Railroads are built on tradition, but they run on innovation. As infrastructure demands grow and timber supplies tighten, the industry is looking for smarter ways to maintain track integrity without overhauling entire systems. Enter the Keyway Tie, a concrete crosstie designed to behave like wood, reshaping how railroads think about track upgrades.
Developed by voestalpine Railway Systems Nortrak, the Keyway Tie blends the structural advantages of concrete with the flexibility and interchangeability of timber. It is not just a new tie; it is a new way of thinking about track evolution.
Bridging the Gap Between Timber and Concrete
Concrete ties have long been recognized for their durability and gauge-holding strength. Yet more than 90% of North American track is still built with wood ties, largely due to their ease of installation and compatibility with existing maintenance equipment. However, timber ties have become increasingly expensive, with inconsistent quality and a growing vulnerability to decay, especially in high-tonnage corridors where gauge failure can lead to derailments.

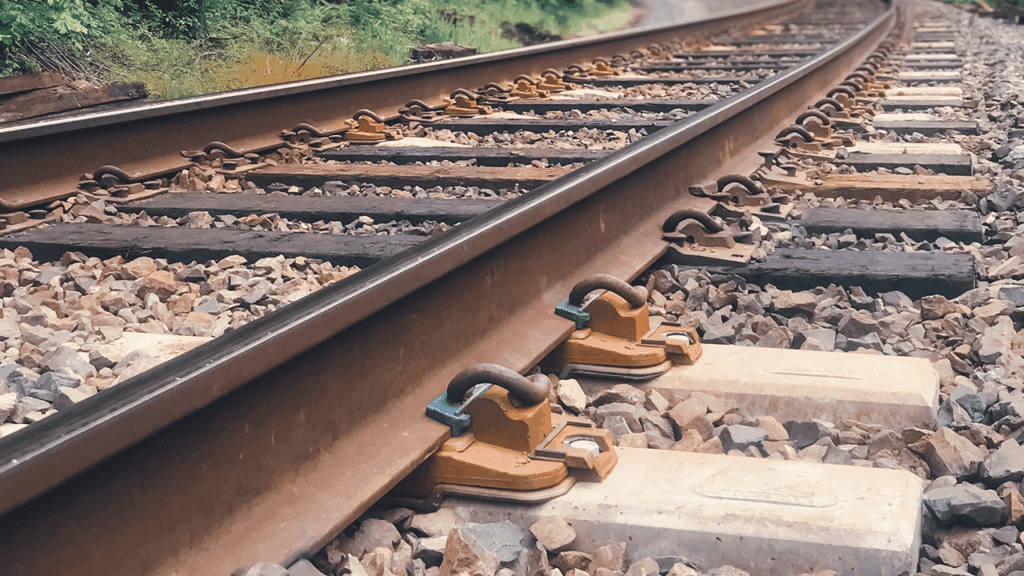

The Keyway Tie offers a middle path. Engineered to match the track stiffness of timber while delivering the longevity of concrete, it can be interspersed with wood ties using standard maintenance-of-way equipment. This approach allows railroads to upgrade incrementally, minimizing disruption and avoiding the high costs of full-scale conversion.
Designed for the Real World

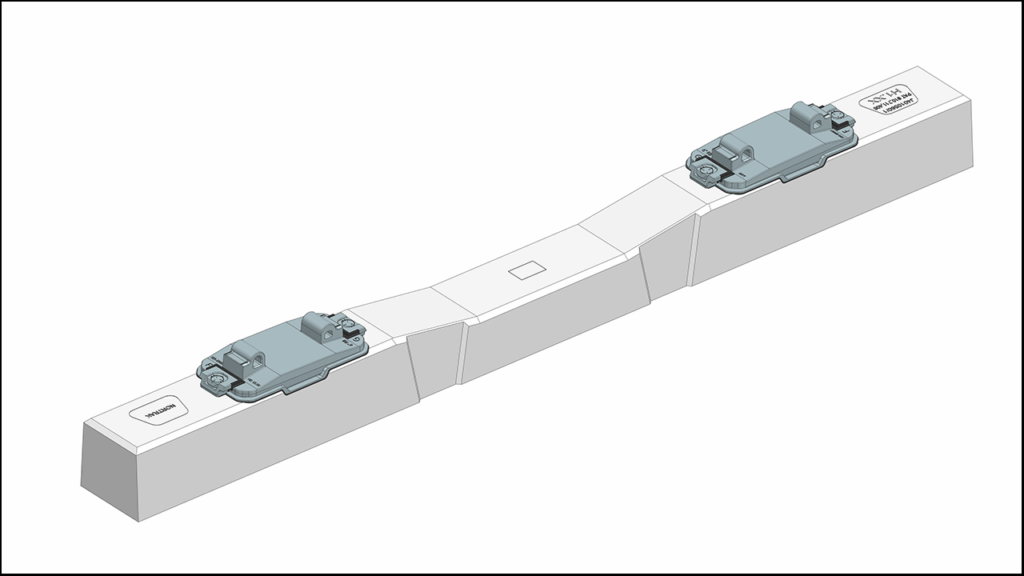

What sets the Keyway Tie apart is its recessed keyway rail seat and interlocking resilient tie plate design, which allows the Keyway Tie to absorb and distribute loads with less impact on the ballast and subgrade materials. The geometry of the tie with its scalloped design enhances interlock with the ballast and improves lateral and longitudinal resistance, helping the track maintain alignment under heavy traffic. Its fastening system also allows for gauge adjustability up to ±0.4 inches, meaning it can be placed directly into existing track without requiring gauge correction.
According to “Digging into Cause Codes for Track-Related Derailments” published in the August 2025 issue of Railway Track & Structures (RT&S), wide gauge accounts for approximately 25% of track-related derailments in North America. Fortunately, this trend has been declining thanks to infrastructure upgrades that include concrete ties, larger tie plates, and elastic fasteners, all of which are integrated into the Keyway Tie. By combining these elements into a single, adaptable solution, the Keyway Tie directly addresses one of the most persistent causes of derailments, reinforcing its value not just in durability, but in safety performance as well.

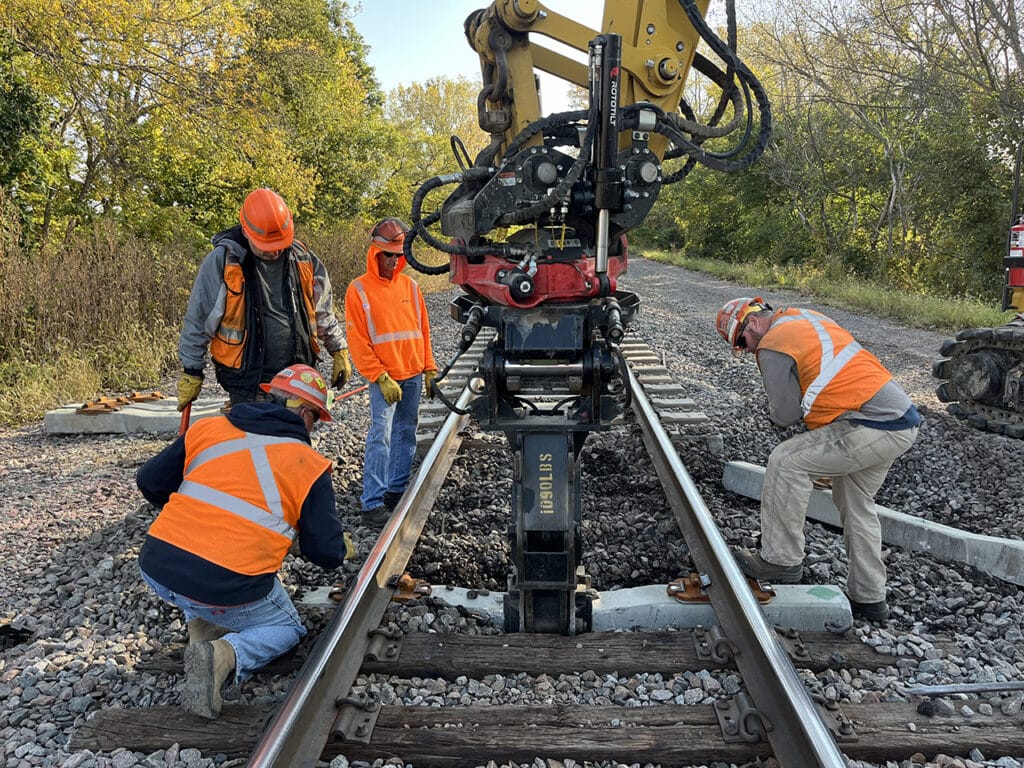

Beyond safety, the Keyway Tie also delivers engineering advantages in some of the most challenging areas of track design: transition zones. Recent research and field trials have demonstrated the Keyway Tie’s effectiveness in bridging track stiffness transition zones, where differences between fixed structures or concrete tie and timber tie track stiffness often lead to high impacts and accelerated degradation. By tuning the resilient components of the Keyway Tie, engineers have created a tie with intermediate stiffness that reduces overload on adjacent components and mitigates ballast degradation. Field installations on Class-1 heavy haul corridors have shown positive results, including reduced plate cutting, improved ballast stability, and elimination of mud holes validating the Keyway Tie as a practical solution for challenging transition areas.
In addition to these findings, trials on Class-1 railroad segments have compared full concrete replacement with interspersed Keyway installations. Early results suggest that the latter approach offers comparable performance with significantly reduced installation time and cost. This presents an attractive option for railroads balancing capital constraints with operational demands.
Investing in Longevity
While the upfront cost of the Keyway Tie may exceed that of traditional timber ties, its value becomes clearer over time. With reduced maintenance cycles, improved gauge retention, and longer service life, the Keyway Tie offers a compelling case for lower total cost of ownership. Notably, its robust design and load-sharing characteristics can also extend the life of adjacent wood ties when interspersed, further amplifying its cost-effectiveness. By matching wood tie track modulus and reducing ballast pressure compared to standard concrete tie track, the Keyway Tie is engineered for both flexibility and durability, making it a strategic investment that prioritizes long-term reliability over short-term savings.
A Tie for All Tracks
The Keyway Tie has already proven its versatility across heavy haul, commuter rail, and light rail applications. Guard rail and transition tie options are also available, making it adaptable to a wide range of track configurations. Its compatibility with timber tie infrastructure makes it especially valuable for networks seeking to extend the life of existing assets while improving safety and reliability.
vaRS Nortrak’s Broader Vision
voestalpine Railway Systems Nortrak offers comprehensive, in-house design and manufacturing of 100% Buy America compliant railway systems solutions. The product portfolio includes special trackwork, switch machines, monitoring systems, premium rail, concrete ties, direct fixation fasteners, resilient clips, pads and insulators. The Keyway Concrete Tie exemplifies our commitment to providing innovative solutions that meet the highest standards of reliability and performance, supporting railroads across North America in achieving a more durable and efficient infrastructure.
Meet the Minds Behind the Innovation
This November, voestalpine Railway Systems Nortrak will present the paper “Track stiffness transition optimization using specialty concrete sleepers and fastener systems” at the International Heavy Haul Association (IHHA) Conference. The presentation will explore the engineering principles behind the Keyway Tie, its performance in transition zones, and its role in advancing track infrastructure strategies.
If you are attending IHHA, we invite you to join the conversation. Learn how small design shifts, like a concrete tie that thinks like wood, can lead to big changes in how we build and maintain the railways of tomorrow.
